The PCB loader machine, also known as a PCB loader or PCB magazine loader, is a specialized equipment used in the electronics manufacturing industry to automate the loading and unloading of printed circuit boards (PCBs) into and out of production equipment. It offers a range of functionality and features that enhance efficiency, productivity, and PCB handling processes.

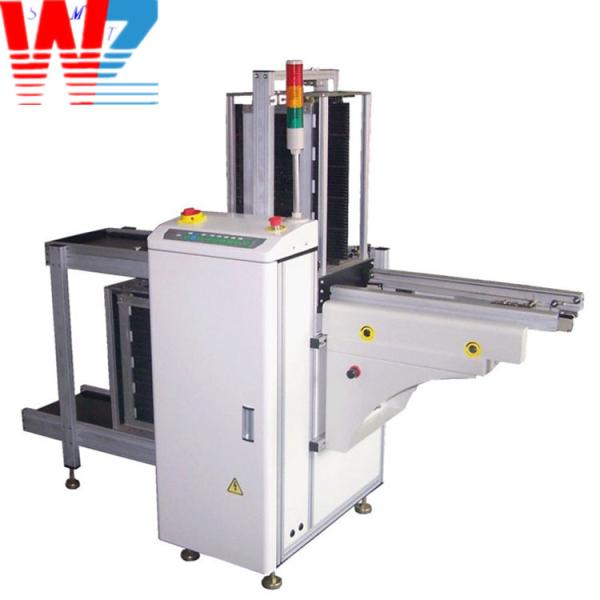

SMT PCB Handling Equipment , Pcb Loader Unloader For Circuit Board
Name: Cheap used and second hand SMT PCB unloader mahcine
Brand: ODM
Model: Cheap used and second hand SMT PCB unloader mahcine
Specification: Cheap used and second hand SMT PCB unloader mahcine
Condition: original/copy
Quality: top qualiy
Stock: large
Payment: L/C T/T D/P Western Union Paypal Money Gram And Others
Shipment: In three days
Warranty: 1 year
Delivery: fedex,ups,dhl,as required
Package: carton box with foam protect
| Description | HY-250ULD | HY-330ULD | HY-390ULD | HY-460ULD |
| PCB delivery height | 900 +/- 20mm |
| Direction | L-R/ R-L |
| PCB size(L*W)(MM) | 50*50~350*250 | 50*50~455*330 | 50*50~530*390 | 50*50~530*460 |
| Time Feed PCB | Approx 6 seconds or Specify |
| Magazine Change Over time | Approx 20 seconds or Specify |
| Indexing pitch | 1-4(10mm pitch) or Specify |
| Power Source & Consumption | 100. 230VAC 1Ph 300VA max |
| Air Pressure | 4-6 bar |
| Air Consumption | 10 ltr/min max |
| PCB Thickness | 0.4mm min |
| Magazine Rack Size(L*W*H)(MM) | 355*320*565 | 460*400*565 | 535*460*565 | 535*530*565 |
| Machine Dimension | 1700*780*1200 | 1900*860*1200 | 2200*920*1200 | 2520*1120*1200 |
| weight | 160kg | 200kg | 240kg | 270kg |
Functionality:
1. PCB Loading: The PCB loader machine can load PCBs from a stack or magazine and feed them into downstream production equipment, such as pick and place machines or reflow ovens. It uses mechanical arms, belts, or conveyors to transfer PCBs smoothly and accurately, minimizing the risk of damage or misalignment.
2. Magazine Handling: The machine can handle PCB magazines or racks, which hold multiple PCBs stacked vertically. It can automatically position and secure the magazine for efficient loading and unloading operations. Some models may include features like magazine indexing or rotation for improved accessibility.
3. PCB Alignment and Orientation: The PCB loader machine ensures proper alignment and orientation of the loaded PCBs. It may utilize sensors, vision systems, or mechanical mechanisms to detect and adjust for any misalignment or rotation of the PCBs, ensuring accurate positioning for subsequent production processes.
4. PCB Stacking and Unloading: In addition to loading, the machine can also stack and unload PCBs after production. It carefully stacks the finished PCBs in magazines or designated containers, ready for transportation or inspection. This feature streamlines the workflow and improves the handling of finished PCBs.
5. Conveyor Interface: The machine interfaces with the production line conveyor system to seamlessly transfer PCBs between different machines or workstations. It can synchronize the movement of PCBs with the conveyor, ensuring smooth and efficient material flow.
6. Control and Monitoring: The PCB loader machine often includes a control system with a user-friendly interface to configure settings, monitor production progress, and diagnose any issues. It may provide features such as error detection, production statistics, and remote monitoring capabilities for enhanced operational control.
Usage Range:
The PCB loader machine is used in various applications within the electronics manufacturing industry, including:
1. PCB Assembly Lines: It is a crucial component of automated PCB assembly lines. By automating the loading and unloading of PCBs, it reduces manual labor, increases production throughput, and maintains consistent workflow.
2. High-Volume Production: The PCB loader machine is particularly useful in high-volume production environments. It enables continuous and efficient loading of PCBs, ensuring uninterrupted production and maximizing output.
3. Multi-Model Production: In scenarios where multiple PCB models or designs are manufactured on the same assembly line, the machine facilitates quick and accurate changeovers. It can handle different PCB sizes and configurations, allowing for versatile production without significant downtime.
4. Integration with Other Equipment: The machine can be integrated with various production equipment, such as pick and place machines, stencil printers, or inspection systems. It acts as a bridge between these machines, ensuring smooth material flow and optimizing the overall production process.
5. Quality Control and Traceability: The PCB loader machine may incorporate features for quality control and traceability. It can integrate with inspection systems to detect defective PCBs and divert them for rework or rejection. Additionally, it may offer barcode or RFID scanning capabilities to track the movement and status of PCBs throughout the production line.
The PCB loader machine plays a vital role in automating the loading and unloading processes in PCB assembly. It enhances efficiency, reduces labor costs, and improves overall productivity in electronics manufacturing operations.
